Diagrams on an Issue

Every issue has a Mermaid diagrams section in its right-hand column, next to your other apps. It's collapsed by default and shows how many diagrams the issue has. Expand it to see them.

It holds two kinds of diagram:

• Saved diagrams, added with the editor. People who can edit the issue can change or delete them.
• Code blocks from the description and comments, drawn read-only. See Mermaid code blocks.

Saved diagrams come first, then the description's code blocks, then the comments', oldest first.

Views

With more than one diagram, the button next to + switches the view:

View	What it shows
Tabs (default)	One diagram at a time; tabs are the diagram titles, then "Description" and "Comment · author". Arrow keys move between tabs
List	All of them, one under another, each with a one-line title

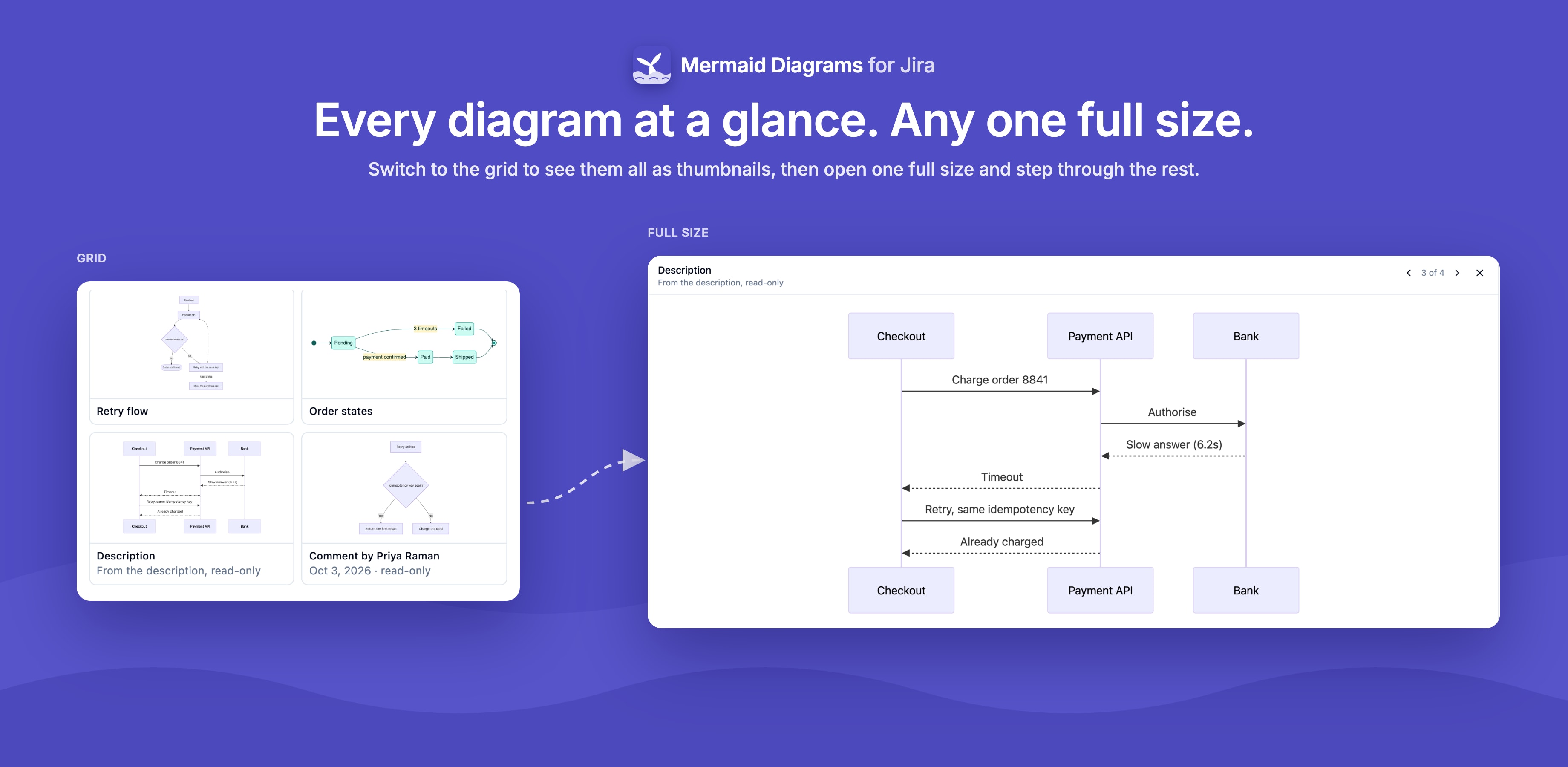

Grid	Fixed-size thumbnails, two per row. Click one to open it full size

Your choice is kept in your browser, so it applies on every issue.

The diagram toolbar

Hover over a diagram to show its toolbar:

Button	What it does
− / % / +	Zoom out and in; click the percentage to go back to 100%. Your zoom is remembered for that diagram, in your browser
Open large	The diagram full size in a modal. Previous and next (or the arrow keys) step through the issue's other diagrams
Edit, Delete	Saved diagrams, for people who can edit the issue. Delete asks first
Go to comment	Diagrams from a comment: scrolls to that comment
Download PNG	A high-resolution image, on a light or dark background to match Jira
Code	The Mermaid code behind the diagram

Size on the issue

Each diagram fits the column's width. If its editor saved a zoom, the diagram is drawn at that size instead, never wider than the column.
